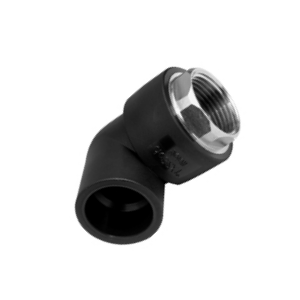

HDPE Brass 90° Female Elbow |
|||
 |
Features
►Water Supply
►Material : HDPE
►Standard : DIN Standard
►Connection : Socket Fusion
►Size : 20 mm ~ 63 mm ( 1/2" ,3/4" ,1" ,2" )
►Working Pressure : 1.6 MPa ( PN16,SDR11 )
►Color : Black
|
 |
|
|
|
|||
| Specification(mm) | CTN | Carton Size | CBM / CTN | N. W / CTN | G. W / CTN | |||||
| Size | Working Pressure |
Dimension | ||||||||
| D x M | MPa | H | H1 | PC | L x W x H (cm) | M3 | Kgs | Kgs | ||
| 20 x 1/2" | 1.6 | 36 | 25 | 280 | 47.5 | 31.5 | 18 | 0.03 | 17.2 | 18.2 |
| 25 x 1/2" | 1.6 | 38 | 30 | 210 | 47.5 | 31.5 | 18 | 0.03 | 14.1 | 15.1 |
| 25 x 3/4" | 1.6 | 39 | 30 | 140 | 47.5 | 31.5 | 18 | 0.03 | 16.1 | 17.1 |
| 32 x 1/2" | 1.6 | - | - | 120 | 47.5 | 31.5 | 18 | 0.03 | 12.5 | 13.5 |
| 32 x 3/4" | 1.6 | - | - | 120 | 47.5 | 31.5 | 18 | 0.03 | 13.5 | 14.5 |
| 32 x 1" | 1.6 | - | - | 90 | 47.5 | 31.5 | 18 | 0.03 | 14.9 | 15.9 |
| 50 x 1/2" | 1.6 | - | - | 165 | 47.5 | 31.5 | 34.5 | 0.05 | 16.9 | 17.9 |
| 50 x 3/4" | 1.6 | - | - | 165 | 47.5 | 31.5 | 34.5 | 0.05 | 20.9 | 21.9 |
| 50 x 1" | 1.6 | - | - | 144 | 47 | 38 | 39 | 0.07 | 29.5 | 30.5 |
| 63 x 1/2" | 1.6 | - | - | 140 | 47 | 38 | 39 | 0.07 | 20.2 | 21.2 |
| 63 x 3/4" | 1.6 | - | - | 92 | 47.5 | 31.5 | 34.5 | 0.05 | 15.7 | 16.7 |
| 63 x 1" | 1.6 | - | - | 80 | 47.5 | 31.5 | 34.5 | 0.05 | 20.3 | 21.3 |
| 63 x 2" | 1.6 | - | - | 24 | 47.5 | 31.5 | 18 | 0.03 | - | - |
