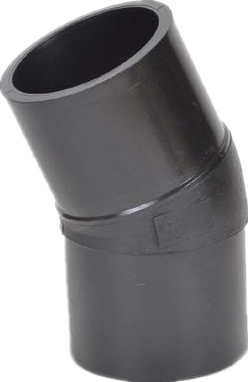

HDPE 22.5°Elbow |
|||
 |
Features
►Water Supply
►Material : HDPE
►Standard : DIN Standard
►Connection : Butt Fusion
►SIZE : 110 mm ~ 400 mm
►Working Pressure :
1.0 Mpa ( PN10 / SDR17 ) 1.25 Mpa ( PN12.5 / SDR13.6 ) ►Color : Black
|
 |
|
|
|
|||
| Specification(mm) | CTN | Carton Size | CBM / CTN | N. W / CTN | G. W / CTN | |||||
| Size | Working Pressure |
Dimension | ||||||||
| D | MPa | L | Z | PC | L x W x H (cm) | M3 | Kgs | Kgs | ||
| 110 | 1.25 | 116 | 80 | 24 | 44.5 | 44.5 | 44.5 | 0.09 | 18.1 | 19.1 |
| 160 | 1.25 | 126 | 80 | 18 | 56 | 51 | 42.5 | 0.12 | 19.0 | 21.0 |
| 200 | 1.25 | 132 | 80 | 8 | 48.5 | 48.5 | 49 | 0.12 | 20.0 | 22.0 |
| 250 | 1.0 | 127 | 80 | - | - | - | - | - | 18.1 | 19.1 |
| 315 | 1.0 | 154 | 100 | - | - | - | - | - | - | - |
| 400 | 1.0 | - | - | - | - | - | - | - | - | - |
