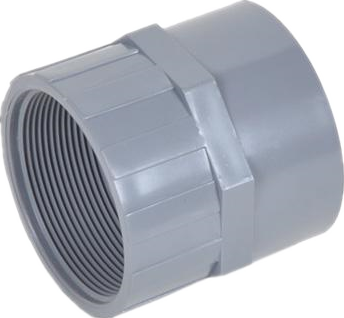

Female Threaded Adaptor |
|||
 |
Features
►Water Supply
►Material : PVC-U
►Standard : DIN Standard
►Connection : Solvent Joint
►SIZE : 20 x ½ '' mm ~ 110 x 4 '' mm
►Working Pressure : 1.0 MPa ( PN10 )
►Color : White ; Grey ; Blue
|
 |
|
|
|
|||
| Specification(mm) | CTN | Carton Size | CBM / CTN | N. W / CTN | G. W / CTN | ||||||
| Size | Dimension | ||||||||||

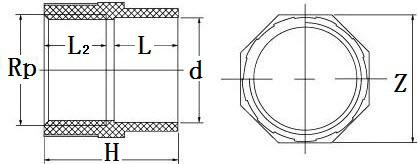

| d x Rp | H | L | L2 | Z | PC | L x W x H (cm) | M3 | Kgs | Kgs | ||
| 20x½" | - | - | - | - | 1280 | 47.5 | 31.5 | 34.5 | 0.05 | 15.6 | 16.6 |
| 25x¾" | - | - | - | - | 700 | 47.5 | 31.5 | 34.5 | 0.05 | 11.6 | 12.6 |
| 32x1" | - | - | - | - | 600 | 47 | 38 | 39 | 0.07 | 14.4 | 15.4 |
| 40x1¼" | 51 | 22 | 27 | 50.5 | 330 | 47.5 | 31.5 | 34.5 | 0.05 | 15.5 | 16.5 |
| 50x1½" | 58 | 24 | 31 | 29.5 | 300 | 47 | 38 | 39 | 0.07 | 20.2 | 21.2 |
| 63x1" | - | - | - | - | - | - | - | - | - | - | - |
| 63x1½" | - | - | - | - | - | - | - | - | - | - | - |
| 63x2" | 73 | 38.5 | 38.5 | 74 | 100 | 47.5 | 31.5 | 34.5 | 0.05 | 13.6 | 14.8 |
| 75x2½" | 83 | 45 | 45 | 87 | 125 | 44.5 | 44.5 | 44.5 | 0.09 | 21.2 | 22.3 |
| 90x3" | - | - | - | 100.5 | 64 | 47 | 38 | 39 | 0.07 | 14.9 | 16.1 |
| 110x4" | - | - | - | 127 | 44 | 53 | 34 | 49 | 0.09 | 15.4 | 16.6 |
