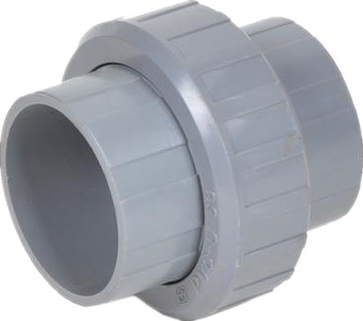

Union |
|||
 |
Features
►Water Supply
►Material : PVC-U
►Standard : DIN Standard
►SIZE : 20 mm ~ 110 mm
►Working Pressure : 1.0 MPa ( PN10 )
►Color : White ; Grey ; Blue
|
 |
|
|
|
|||
| Specification(mm) | CTN | Carton Size | CBM / CTN | G. W / CTN | N. W / CTN | |||||

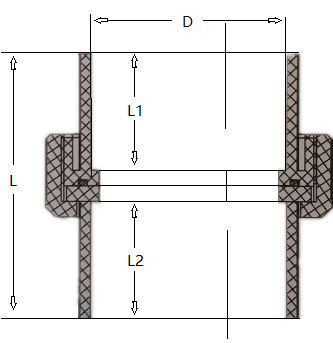

| Size | Dimension | |||||||||
| D | L | L1 | L2 | PC | L x W x H (cm) | M3 | Kgs | Kgs | ||
| 20 | 47 | 16 | 16 | 560 | 47.5 | 31.5 | 34.5 | 0.05 | 21.5 | 20.2 |
| 25 | 53 | 19 | 19 | 320 | 47.5 | 31.5 | 34.5 | 0.05 | 20.2 | 18.9 |
| 32 | 62 | 22 | 22 | 240 | 47.5 | 31.5 | 34.5 | 0.05 | 20.8 | 19.5 |
| 40 | 71 | 26 | 26 | 180 | 47 | 38 | 39 | 0.07 | 25.2 | 24.2 |
| 50 | 83 | 31 | 31 | 125 | 44.5 | 44.5 | 44.5 | 0.09 | 29.2 | 27.9 |
| 63 | 94 | 38 | 38 | 80 | 42 | 36.5 | 52.5 | 0.08 | 25.2 | 23.9 |
| 75 | 98 | 44 | 44 | 64 | 44.5 | 44.5 | 44.5 | 0.09 | 22.3 | 21.2 |
| 90 | 115 | 51 | 51 | 60 | 48.5 | 48.5 | 49 | 0.12 | 26.5 | 25.2 |
| 110 | - | - | - | 18 | - | - | - | - | - | - |
