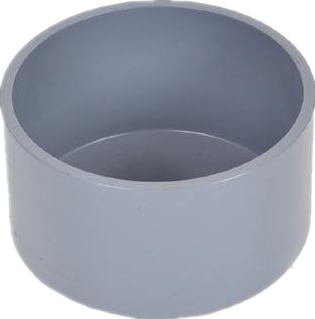

End Cap |
|||
 |
Features
►Water Supply
►Material : PVC-U
►Standard : DIN Standard
►SIZE : 20 mm ~ 400 mm
►Working Pressure : 1.0 MPa ( PN10 )
►Color : White ; Grey ; Blue
|
 |
|
|
|
|||
| Specification(mm) | CTN | Carton Size | CBM / CTN | N. W / CTN | G. W / CTN | ||||
| Size | Dimension | ||||||||
| D | H | h | PC | L x W x H (cm) | M3 | Kgs | Kgs | ||
| 20 | 24 | 16 | 3200 | 47 | 38 | 39 | 0.07 | 22.6 | 23.9 |
| 25 | 27.5 | 19 | 1600 | 47.5 | 31.5 | 34.5 | 0.05 | 16.5 | 17.8 |
| 32 | 32 | 22 | 800 | 47.5 | 31.5 | 34.5 | 0.05 | 13.2 | 14.5 |
| 40 | 36 | 26 | 594 | 47.5 | 31.5 | 34.5 | 0.05 | 14.6 | 15.9 |
| 50 | 45 | 31 | 315 | 47.5 | 31.5 | 34.5 | 0.05 | 17.2 | 18.5 |
| 63 | 54 | 38 | 180 | 47.5 | 31.5 | 34.5 | 0.05 | 13.3 | 14.3 |
| 75 | 66.5 | 44 | 108 | 47.5 | 31.5 | 34.5 | 0.05 | 11.5 | 12.7 |
| 90 | 80 | 51 | 105 | 53 | 34 | 49 | 0.09 | 18.9 | 20.2 |
| 110 | 97 | 61 | 60 | 47 | 38 | 39 | 0.07 | 20.2 | 21.5 |
| 125 | 93.5 | 70 | 48 | 56 | 46 | 35 | 0.09 | 18.0 | 19.2 |
| 140 | - | - | 40 | 44.5 | 44.5 | 44.5 | 0.09 | 29.0 | 30.0 |
| 160 | 126 | 86 | 20 | 44.5 | 44.5 | 44.5 | 0.09 | 20.2 | 21.5 |
| 180 | - | - | 20 | 48.5 | 48.5 | 49 | 0.12 | - | - |
| 200 | 147 | 106 | 12 | 44.5 | 44.5 | 44.5 | 0.09 | 20.4 | 21.9 |
| 225 | 162.5 | 119 | 12 | 48.5 | 48.5 | 49 | 0.12 | 25.8 | 26.8 |
| 250 | 183 | 131 | 6 | 56 | 46 | 35 | 0.09 | 16.5 | 18.0 |
| 280 | - | - | 4 | - | - | - | - | - | - |
| 315 | 228 | 164 | 3 | 56 | 46 | 35 | 0.09 | 14.8 | 16.0 |
| 355 | - | - | 2 | 42 | 36.5 | 52.5 | 0.08 | 11.0 | 12.0 |
| 400 | - | - | 2 | 53 | 43 | 52.5 | 0.12 | 13.0 | 14.0 |
